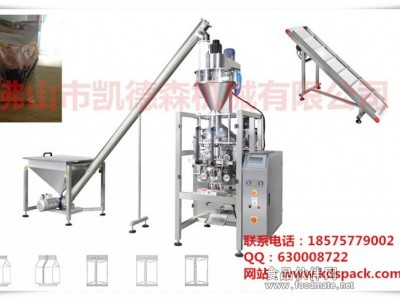

KDS-420 Large vertical automatic packaging machine
主要特能和结构特点Features
1. 低投入，高回报，速度快，效率高。
2. 进口PLC全电脑控制系统，人机界面，超大显示触屏操作简单。
3. 伺服运膜系统，定位准确，整机性能。
4. 限度的提高了整机的可靠性和智能化程度。
5. 本机与计量装置配套，即可自动完成送料、制袋、充填、日期打印、充气（排气）、计数、成品运输的全过程。
1. Low input and high output, quick speed and high efficiency.
2. imported PLC control system, human-machine interface, big touch screen, easy operation.
3. Service film transporting system, accurate positioning, the whole performance。
4. Improve the reliability and intellectualization for complete machine in maximum range.
5. This machine can be mated with measuring device, that is, finishing the whole process of automatic feeding, baging, filling, date printing and gas filling (exhuasting), accouting and product conveying.
适用范围 Application
适合包装颗粒、条状、块状以及范围在2000ML以内的产品。
It is suitable for packing materials in grain or piece, and material within the range of 2000ML.
可适合的配套The machine can be equipped with following devices
电脑组合秤、半自动投料装置、螺旋式粉剂计量机、量杯式计量机、液体灌装计量机
Electronic weighing system,semi automatic feeding device,spiral type powder measuring device and cup measuring device.
技术参数Technical Parameters
| 型号 Model | KDS-420 |
| 制袋尺寸 Bag size | 长(Length)：60~300(mm) 宽(Width)：80~200（mm） |
| 包装速度 Packing speed | 5-70袋(bags)/分钟(min) |
| 膜宽 Max film width | 420(mm) |
| 卷膜厚度 Film thickness | 0.04-0.09(mm) |
| 拉膜方式 Pulling film type | 双皮带拉膜 dual belt tension membran |
| 耗气量 Air consumption | 0.8Mpa 0.5m³/min |
| 电源类型 Power source | 2.2kw 220v 50Hz |
| 计量范围 Measuring range | Max2000ml |
| 外形尺寸 Dimension | 长(L)1320*宽(W)920*高(H)1392mm |
| 整机重量 Weight | 450kg |
